HAMR Modeling Elements and Semantics Concepts

With HAMR, system models (whether AADL or SysMLv2) are built from “semantic building blocks” that represent computation and communication patterns commonly used in embedded systems. These building blocks provide a modeling palette for engineers to draw from when they specify the architecture of a system. The building blocks are accompanied by standardized property sets (key/value pairs) that allow the semantics of building blocks and their interactions to be configured in models. Together, a model’s building block instances, their interconnections, and stated property values forms an architecture specification (an abstraction or skeleton of a system’s software, hardware, and deployment structure) that HAMR can use for analysis, code generation, automated build, and assurance.

Historically, many of these building blocks were first presented in a modeling language in Honeywell’s MetaH tool. These were subsequently transitioned to and expanded in the AADL SAE standard. Now, these concepts are being transitioned into SysMLv2 by the OMG Real-Time, Embedded, and Safety-Critical systems (RTESC) working group. In SysMLv2, the building blocks and property sets are defined in model libraries that a developer imports and references when building models. In these libraries, the building block concepts are still identified by name as “AADL” concepts. So we will use the term “AADL modeling elements” to refer to these building blocks and properties even though they are used in both AADL model language syntax as well as SysMLv2 model language syntax.

The building blocks include both software concepts such as thread (real-time task), process, commmunication port, communication channel and hardware concepts such as processor, bus, memory, etc. Work in the AADL community has illustrated and even standardized how these abstract concepts can be mapped to specific standardized architecture frameworks such as ARINC 653 or FACE. The entirety of AADL consists of a very rich collection of semantics concepts and property sets. HAMR only treats a subset of these concepts that are most relevant for systems that our industrial partners are building. Because HAMR’s focus is on software architecture analysis and code generation, it strongly emphasizes the software aspects. We will refer to the subset of AADL modeling elements that HAMR treats as “HAMR modeling elements”. At the end of this chapter, we summarize list some of the features of AADL that HAMR does not support.

This chapter provides the informal semantics of HAMR modeling elements. Of these, the most important to understand are the concepts related to thread components and communication ports. These influence..

  • the structure of the application code skeletons
  • the inter-thread communication APIs that are auto-generated for developers to use for implementing thread inputs and outputs
  • the character of the model-level GUMBO behavior contracts and auto-generated code-level contracts are used to both test and formally verify components.

In this chapter we focus on describing the informal semantics of HAMR modeling elements. Because HAMR accepts both AADL and SysMLv2 (with different syntax for each), the reader should consult specific chapters on SysMLv2 modeling syntax and AADL model syntax. Then, chapters on code generation will illustrate how the informal semantic is concretely realized in implementations.

A significant amount of work has gone into providing a formal, mechanized semantics of key aspects of HAMR modeling elements and run-time libraries in the Isabelle theorem prover. While full HAMR code generation and analysis has not been formally proven correct in Isabelle, the Isabelle-based semantics influences the design and implementation of HAMR code generation as well as the GUMBO contract language design and verification framework. An overview of the semantics framework, with links to papers and Isabelle models is given in a separate chapter.

Embedded Software Modeling

The Simple Isolette Example

The figure below presents the graphical view of the architecture of a simple system, called the “Simple Isolette” using AADL iconography.

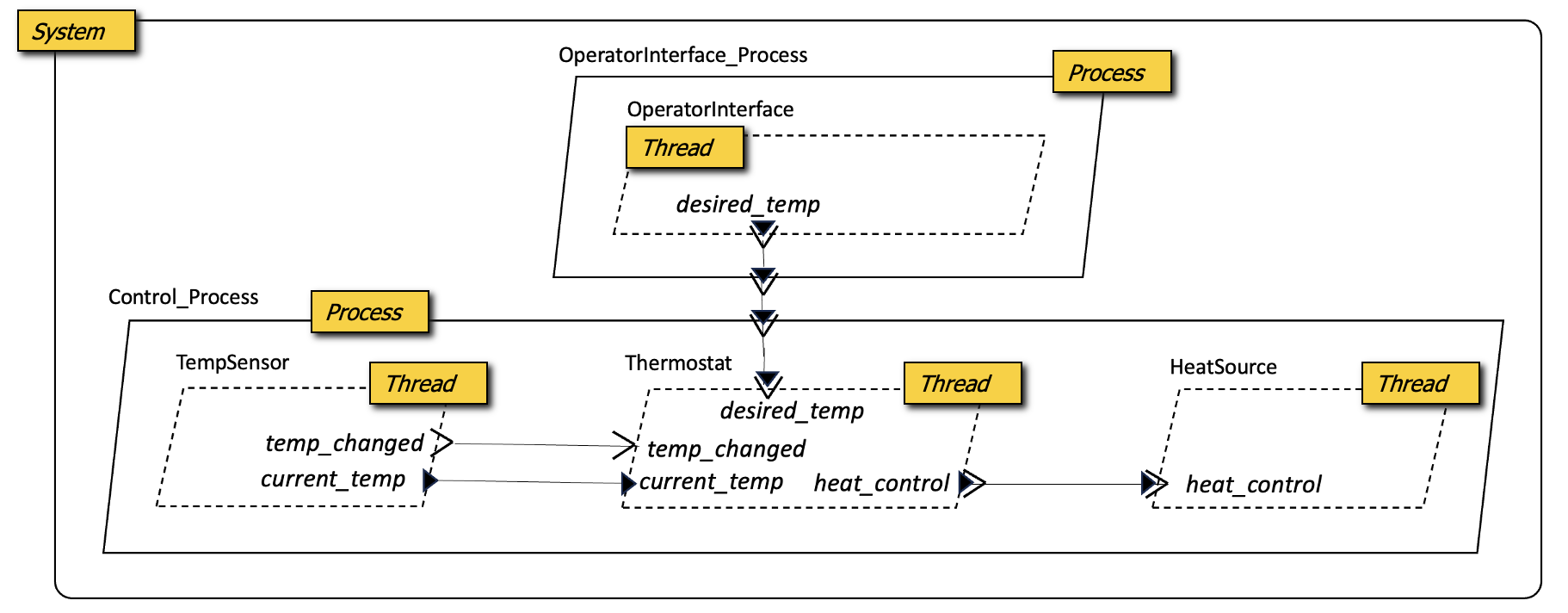

Simple Isolette - Graphical View

The Simple Isolette is an infant (baby) incubator system, the purpose of which is to keep an infant an appropriate temperature in the first hours of its life. A TempSensor component senses the air temperature within the incubator enclosure which holds the infant. A Thermostat component implements control laws to turn the HeatSource on or off to keep the air temperature within a desired temperature range set by a nurse via the OperatorInterface.

Several variations of this example are used through the HAMR documentation and tutorials. This variant is constructed specifically to illustrate…

  • the three different types of port-based communcation supported by HAMR (event, data, and event data),
  • the type different types of thread component supported by HAMR (periodic and sporadic)
  • the typical hierachy of system, process, and thread components.

We discuss each architectural feature of this example below, but here is the high-level intuition..

  • the thread components represent the heart of the system computation.
    • the TempSensor is executed periodically (according to a period specified as a component property). Each time it is executed, it calls a hardware driver (not shown in the architecture) to retreive the current temperature value. It puts the current temperature value out its current_temp data port, and then sends a notification out its temp_changed event port indicating that an updated temperature reading is available.
    • the OperatorInterface is executed periodically to retreive the most desired air temperature range input by the nurse. It combines the low bound and high bound for the temperature range into a single message which it then puts on its desired_temp output event data port.
    • The Thermostat is a sporadic (event triggered) thread. It’s execution is triggered by the arrival of events on either the temp_changed event port or the desired_temp event data port. During execution, the arriving message is dequeued, then the thread gets the current temperature from its input data port, compares it to the desired temperature range, and puts out an On/Off message on its output heat_control event data port. If the triggering message is a desired_temp from the operator interface, it also stores the most recent desired temperature settings in local state before computing the control laws and On/Off message. The current_temp value does not need stored in local state because it is always available for reading on the data port (data ports are not queued).
    • The HeatSource is an sporadic thread. Its execution is triggered by the arrival of a heat_control message. Upon execution, the incoming message is dequeued and a lower-level driver is called to actuate the heat source appropriately.
  • Each of the process components representes a protected memory region in which threads may executed and maintain their local state. In this variant of the Simple Isolette, the TempSensor, Thermostat, and HeatControl threads are all in one protected memory region, while the OperatorInterace thread is in a separate process.
  • A system component aggregates the process components (along with some hardware components, not shown)

This example is termed “Simple” because it is a simplification of a more complex (full) Isolette system, which is also addressed in detail in HAMR documentation. The requirements and informal design of the full Isolette system were originally presented in the FAA Requirements Engineering Management Handbook – a technical report released by the FAA to document best-practices for requirements engineering.

A HAMR SysMLv2 textual model specification for the Simple Isolette corresponding to the graphical view above is presented below (a detailed discussion of the SysMLv2 syntax can be found in the chapter on SysMLv2 ToDo: fix cross reference.

package Isolette {

  private import HAMR::*;

  //=================================
  //  S y s t e m   Definition
  //=================================

  part def Isolette_System :> System {
    // --- implementation ---
    // subcomponent instances
    part operator_interface_process: OperatorInterface_Process;
    part control_process : Control_Process;

    connection dt : PortConnection connect operator_interface_process.desired_temp to control_process.desired_temp;
  }

  //=================================
  //  P r o c e s s   Definitions
  //=================================

  part def OperatorInterface_Process :> Process {
    // --- interface ---
    port desired_temp : EventDataPort { out :>> type : Set_Points; }

    // --- implementation ---
    // thread subcomponent instances
    part operator_interface: OperatorInterface;

    connection dt : PortConnection connect operator_interface.desired_temp to desired_temp;
  }

  part def Control_Process :> Process {
    // --- interface ---
    port desired_temp : EventDataPort { in :>> type : Set_Points; }

    // --- implementation ---
    // thread subcomponent instances
    part temp_sensor: TempSensor;
    part thermostat: Thermostat;
    part heat_source: HeatSource;

    // --- connections ---
    // interface connection to internal component
    connection dt : PortConnection connect desired_temp to thermostat.desired_temp;
    // internal connections
    connection tc : PortConnection connect temp_sensor.temp_changed to thermostat.temp_changed;
    connection ct : PortConnection connect temp_sensor.current_temp to thermostat.current_temp;
    connection hc : PortConnection connect thermostat.heat_control to heat_source.heat_control;
  }

  //=================================
  //  T h r e a d   Definitions
  //=================================

  part def TempSensor :> Thread {
    // --- interface ---
    port current_temp : DataPort { out :>> type : Temp; }
    out port temp_changed : EventPort;

    // properties
    attribute :>> Period = 1000 [ms];
    attribute :>> Dispatch_Protocol = Periodic;
  }

  part def OperatorInterface :> Thread {
    // --- interface ---
    port desired_temp : EventDataPort { out :>> type : Set_Points; }

    // properties
    attribute :>> Period = 1000 [ms];
    attribute :>> Dispatch_Protocol = Periodic;
  }

  part def HeatSource :> Thread {
    // --- interface ---
    port heat_control : EventDataPort { in :>> type : On_Off; }

    // properties
    attribute :>> Dispatch_Protocol = Sporadic;
  }

  part def Thermostat :> Thread {
    // --- interface ---
    port current_temp : DataPort { in :>> type : Temp; }
    in port temp_changed : EventPort;
    port desired_temp : EventDataPort { in :>> type : Set_Points; }
    port heat_control : EventDataPort { out :>> type : On_Off; }

    // properties
    attribute :>> Dispatch_Protocol = Sporadic;
  }

  //=================================
  //  D a t a   Type Definitions
  //=================================

  part def Temp :> Struct {
    degrees : Base_Types::Integer;
  }

  part def Set_Points :> Struct {
    lower : Temp;
    upper : Temp;
  }

  enum def On_Off {
    enum On;
    enum Off;
  }
}

The current implementation of HAMR code generation for seL4 includes a HAMR model restriction that each Process component (corresponding to an seL4 Microkit protection domain) contain exactly one Thread component. This is due to way HAMR static component scheduling is currently implemented for seL4. HAMR also does not currently support sporadic components for seL4. (Note: we expect both of these restrictions to be lifted by the end of 2026).

A variant of the Simple Isolette that supports these restrictions is given below.

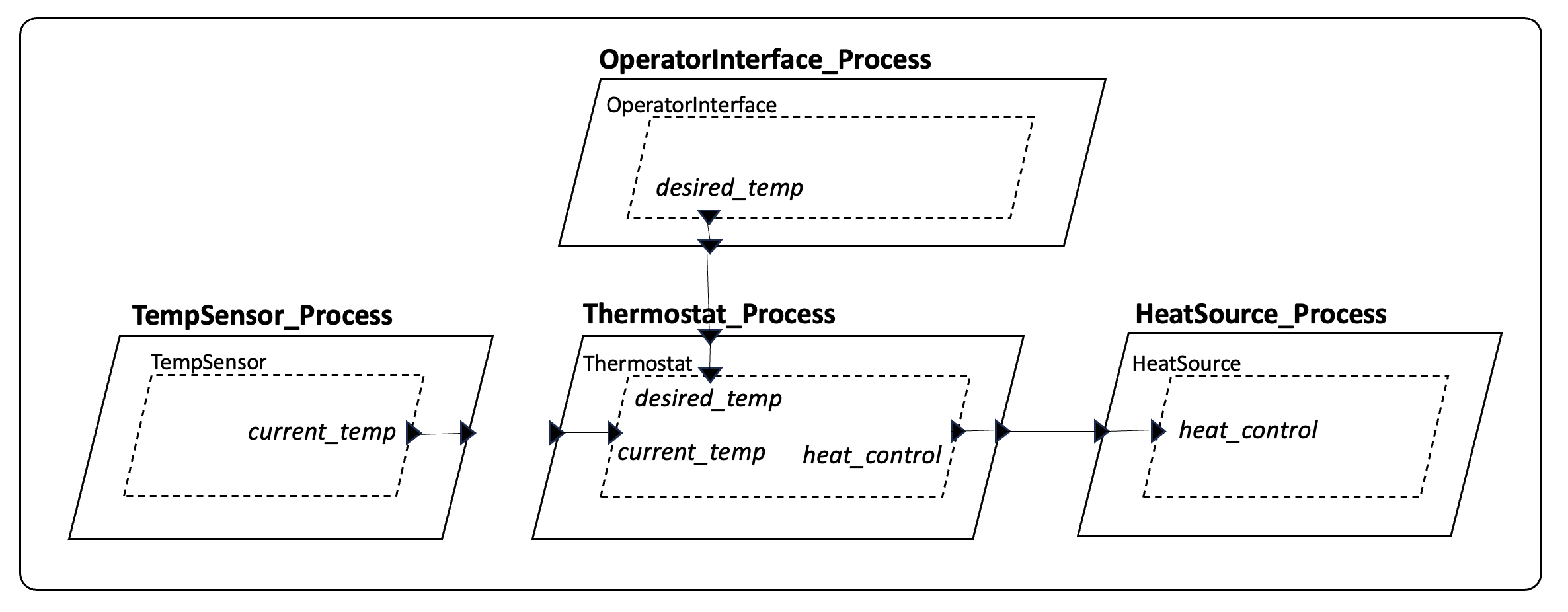

HAMR Thread Application Code Entry Point

This variant of the architecture differs from the original one above in the following ways…

  • Each process contains exactly one thread (HAMR seL4 code generation restriction)
  • All threads are periodic (HAMR seL4 code generation restriction)
  • All ports are data ports (HAMR does support event and event data ports for seL4 as will be illustrated in other examples)
  • There is no temp_changed event to notify the Thermostat. Instead, the Thermostat will simply poll the current_temp data port each time it is dispatched.

Note that HAMR models for seL4 are also accompanied by a static cyclic schedule (not shown) that gives the ordering of components. For example, for this architecture variant, an appropriate schedule would be OperatorInterface, TempSensor, Thermostat, OperatorInterface.

The notions of execution control (component dispatching) and port access are the main differences observable to the developer between this variant and the original one.

  • the execution of the OperatorInterface and TempSensor are similar to before. The key difference is that the TempSensor does not put out a temp_changed event.
  • When the Thermostat is dispatched, it will poll both the current_temp and desired_temp data ports, then compute the thermostat control logic to determine the appropriate On/Off command to be placed on the heat_control port.
  • When the HeatSource is dispatched, it will poll the heat_control port and then actuate the heat source appropriately.

HAMR code generation for seL4 ensures that each thread runs in a separate Microkit protection domain, indicated by the containing process for each thread – guarantee strong space and time partitioning for each thread.

HAMR Software Component Categories and Hierarchy

HAMR supports the following AADL component categories (“role” indicates the general purpose of the component within HAMR-built systems).

Category Role
System Aggregates connected software and hardware components into a system or subsystem
Process A protected address space with one or more threads
Thread Group A logical aggregation of threads
Thread A real-time task; a unit of schedulable computation
Data Specifies data types to be used for port-based communication within the system

Below are some aspects of AADL components that are not supported by HAMR…

  • AADL includes Subprogram and Subprogram Group components, which can be used to model procedure or method-level software architecture within threads, etc. HAMR doesn’t support these because (a) it enforces a common top-level method structure (a notion of “entry points”) within a thread (thus, there is no need for the developer to specify the method structure) and (b) the HAMR’s restricted approach simplifies formal specification, verification, and timing/scheduleability analysis. In the future, HAMR may add limited notions of Subprogram (e.g., in passive components representing protected memory regions).
  • AADL Data components can also represent passive (non-threaded) data blocks shared between threads. HAMR doesn’t support this. It only uses Data components for specifying data types, following the AADL Data Model Annex.
  • AADL Device components represent scheduled driver software interfaces to hardware. In practice, there is little semantic difference from AADL threads, and so HAMR only supports AADL Thread components.

Even though HAMR supports Thread Group, these are seldom used in HAMR examples.

Components definitions are given in packages in both AADL and SysMLv2. This enables defintions of component interfaces and properties to be shared and reused across systems.

A system is built from instances of components arranged in a hierarchy to reflect the logical structure of the deployed system. AADL has rules for the hierarchical arrangement of component instances. The figure below gives a visual depiction these.

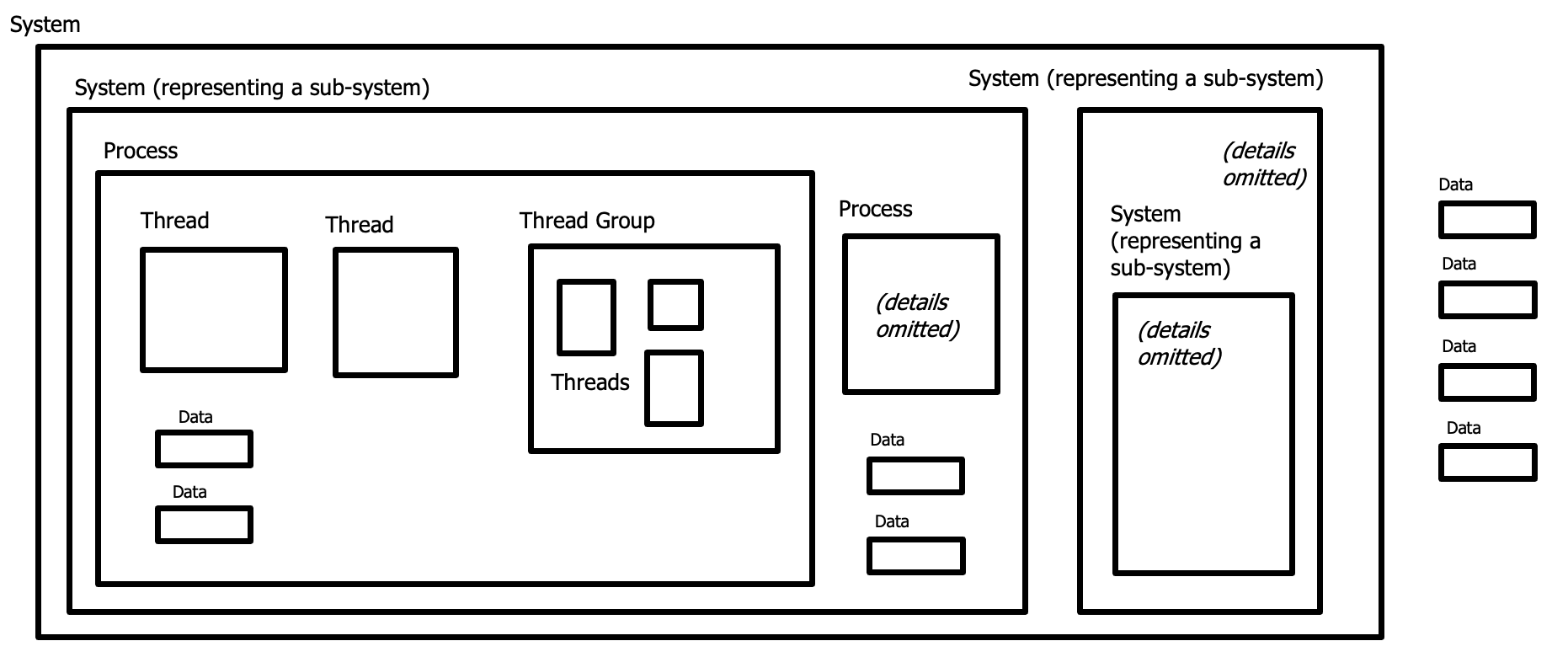

HAMR Component Hierarchy

  • A System component may contain other System component instances (representing subsystems), and this nesting of Systems can be repeated to an arbitrary depth. A System may also include Process component instances, Data components (declaring data types), and hardware components (not shown).
  • A Process component contains one or more Thread or Thread Group component instances.
  • A Thread Group contains one or more Thread component instances.
  • A Thread contains no component instances; Each Thread is a leaf node in an HAMR architecture (discussed in greater detail below).

Both the OSATE AADL editor and the HAMR SysMLv2 VSCode extension can check that models conform to these hierarchy rules (as well as other well-formedness condtions).

Common Aspects of Software Component and Connection Structure

The software components described above have the following characteristics in common…

  • Component interfaces consisting of ports: Each component’s interface consists of zero or more ports, where each port is from one of the AADL port categories – data, event, or event data port. Both SysMLv2 and AADL have other notions of interface features (e.g., AADL’s subprogram calls) that are not supported by HAMR.
  • Ports/connections are unidirectional: HAMR restricts ports to be unidirectional – they are classified as either in or out. While AADL and SysMLv2 both allow bi-directional ports (in AADL, in out ports), the HAMR restriction to uni-directional ports simplifies functional and information contract specification and verification. The bi-directional communication use cases that might be accomplished with in out ports can be achieved in HAMR using a pair of distinct ports (one in, the other out).
  • Ports are typed: data and event data ports have declared types, where the types are defined via data components following the approach originating in the AADL Data Model Annex (see the chapter of data type definitions ToDo: give cross reference.)
  • Component connections associate a source port with a destination port: When component interfaces are integrated by connecting their ports, each connection relates a source port (which originates the communicated event, message, or data) and a destination port (which consumes the communicated event, message, or data). Each source port may be connected to one or more destination ports (referred to as a “fan out” situation). However, only event and event data destination ports can be associated with more than one source port (“fan in”). Following the AADL standard, fan-in is not allowed for data ports because this can result in race conditions since data ports are non-queued.
  • Well-formed connections: When component instances are integrated by connecting their ports, the ports on both sides of the connection must have the same port category (event, data, and event data) and equivalent types. This is more restrictive than AADL, which allows, e.g., an event data port to be connected to a data port.
  • Interfaces cannot be by-passed: SysMLv2 allows a part to make associations/connections with another part’s internal subparts, bypassing the enclosing part’s interface. HAMR follows AADL philosphy and restricts connections to only be given in terms of component/part interfaces.

AADL requirements component specifications to be given in two distinct declarations: a component type (i.e., a component “interface”) and a component implementation (which typically gives subcomponent structures as for non-leaf component categories including system, process and thread group). This emphasized the notation of an interface (somewhat analogous to interface in Java-like programming languages) which may have multiple conforming implementations from which instances are constructed (analogous to a Java class implementing an interface and then instances between created from the class using new). This forced separation often results in tedium for the developer since in the common situation of a component with only one implementation both declarations must be given. SysMLv2 does not force this distinction: both interface (a collection of port usages) and implementation (declaration of subcomponents and connections) can be written in a single SysMLv2 part definition. The notion of an interface with multiple implementations can be achieved using the native SysMLv2 inheritance mechanisms. Nevertheless, to emphasize the elements of the interface as distinct from the “implementation” aspects, HAMR encourages parts representing components to be organized and commented as follows with interface elements occuring at the top of the part definition.

  part def Control_Process :> Process {
    // --- interface ---
    port desired_temp : EventDataPort { in :>> type : Set_Points; }

    // --- implementation ---
    // thread subcomponent instances
    part temp_sensor: TempSensor;
    part thermostat: Thermostat;
    part heat_source: HeatSource;

    // --- connections ---
    // interface connection to internal component
    connection dt : PortConnection connect desired_temp to thermostat.desired_temp;
    // internal connections
    connection tc : PortConnection connect temp_sensor.temp_changed to thermostat.temp_changed;
    connection ct : PortConnection connect temp_sensor.current_temp to thermostat.current_temp;
    connection hc : PortConnection connect thermostat.heat_control to heat_source.heat_control;
  }

HAMR Component Categories

In the sections below, we given the informal semantics of each HAMR component category, along with intutition about how that category is represented via code generation for targetted platforms.

System

As defined in the AADL standard, “a system represents an assembly of interacting application software, execution platform, and system components”. A system component definition may contain system instances as sub-elements (representing subsystems).

For HAMR models, while there may be multiple system components defined (some representing subsystems, or some representing different architectures for the same system concept), analysis and code generation is performed with a selected root system component that contains all the information necessary to carry out the analysis or code generation. This will typically be the “top-level” system component, although there may be situations where an enclosing system is defined for informational purposes only (e.g., representing the context of the system to be analyzed for supported via code generation). The specific mechanism for selecting a root system component depends on the HAMR modeling language editor being used (e.g., the CodeIVE or OSATE). When HAMR analysis or code generation is invoked “headlessly” (without an IDE), command line options are available to indicate the root system. When there is a single system component defined in the given models, that component is the root system by default.

When a root system component is selected for HAMR, HAMR will generate an instance model for the system that “flattens” the architecture down to thread components (see ToDo: Cross reference later section). Typically, HAMR analyses and code generation are performed directly on the instance model since it contains that runtime structure of the system.

Given that system components will not be present instance models from which code is generated, they have no precise physical representation in the deployed system. Instead, allow conceptual boundaries to be specified for scoping of responsibilities, defining the boundaries of analysis or code generation, or scoping attributes that are “global” with respect to analysis or code generation.

ToDo: Give references to models in the HAMR example repository illustrating some of these aspects

Attributes

ToDo: list common attributes

Process

As defined in the AADL standard, “A process represents a virtual address space, i.e., it represents a space partition unit whose boundaries are enforced at runtime.”

Platform Interpretation
seL4 Represents a “partition” in the kernel. For example, for seL4 Microkit, each model Process component instance causes an seL4 Microkit protection domain to be generated (actually, a tight nesting of two protection domains, one of which provides a thin hosting of another to more easily implement scheduling and error handling).
JVM HAMR code generation currently implements a complete system in a JVM, which runs as a single OS process. Therefore, Process boundaries are effectively ignored when targetting the JVM for HAMR code generation.

Attributes

ToDo: list common attributes

Thread Group

Thread

Data

Informal Semantics of Port Categories

Informal Semantics of Thread Dispatch and Port Interactions

According to the AADL standard, system execution in AADL-compliant run-times is divided into phases: an initialization and a compute phase. During the initialization phase, platform services are launched, thread and communication infrastructure is set up, and each thread’s application code may initialize thread local variables and put initial values on output ports. After all initialization activities are completed, the system moves to the “normal” compute phase in which thread application code is executed according to the configured scheduling policy.

The AADL standard indicates that a thread’s application code is organized into entry points (e.g., methods that are invoked from the AADL run-time and associated integration of the underlying platform’s scheduling framework). For example, the Initialize Entry Point is called during the system’s initialization phase, and the Compute Entry Point is called during the system’s compute phase. Other entry points are defined for handling faults, performing mode changes, etc. HAMR does not support these other entry points at the current time.

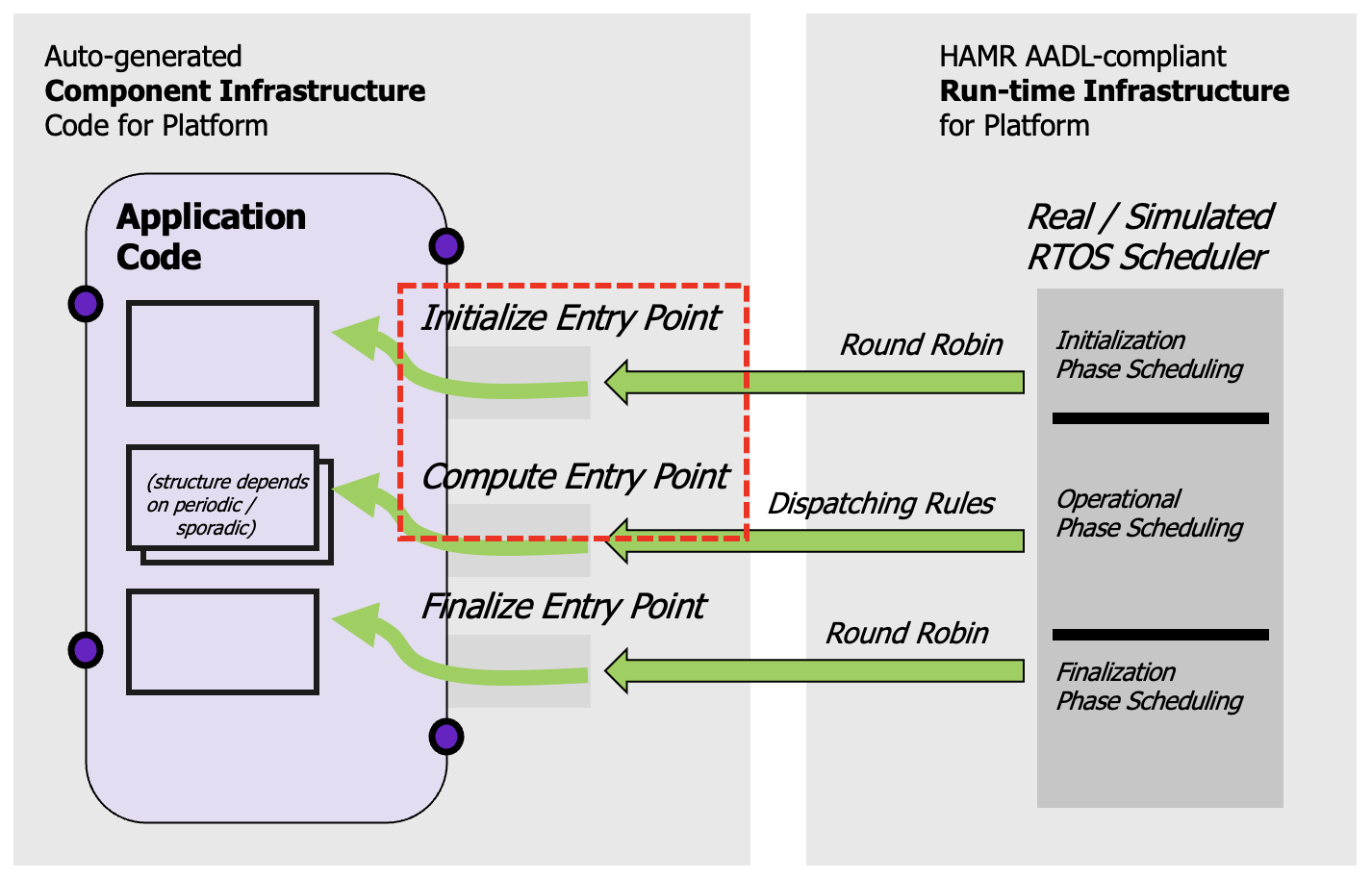

The figure below sketches some of the key concepts of HAMR thread entry points. HAMR Thread Entry Point Concepts

  • Initialize Entry Point During the system initialization phase, the underlying platform scheduling is configured to execute the Initialize Entry Point application code of each thread. During execution of a thread Initialize Entry Point,
    • the entry point code is not allowed to read the thread’s input ports,
    • the entry point code must initialize all local state,
    • the entry point code must put initial values on each of its output data ports,
    • the entry point code may optionally put values on its output event and event data (event-like) ports.

After each thread is executed, initial values on thread output ports are propagated to receiving ports in a global communication action. The order in which the thread initialize entry points are executed is immaterial if the thread does not take the option of putting output on event and event data ports. This is because a thread entry point does not read input ports (therefore it does not depend on the output of other threads). Moreover, due to the fact that there is no fan-in allowed for input data ports, there are no race conditions when propagating values to input data ports; the global communication action above will communicate a single value from a source data port to a single connected destination data port. Without event/event data writes, each thread Initialize Entry Point is completely independent of the others; ordering does not affect semantics. Writes to output event-like ports from multiple threads S1, .., Sn with ports connected to the same input port of thread T1 may lead to a race condition in the global communication action if the capacity of the input port is less than n. In such a situation, the buffer for the input port will overflow, leading to a drop of a message according to the configured input queue policy. In such situations, the ordering of the communication action impacts the resulting global state (specifically, the state of input port queues). Typically, as part of the assurance activities, one would aim to demonstrate that this form of overflow can never occur.

Scheduling of Initialize Entry Points is carried out in a round robin scheduling approach – each thread entry point only needs to be executed once. When targetting seL4, a time budget for each individual entry point can be set with an overall bound on the initialization phase.

  • Initialize Entry Point

Many of AADL’s thread execution concepts are based on long-established task patterns and principles for achieving analyzeable real-time systems (such as found in Burns and Wellings “Analysable Real-Time Systems”).
Burns and Wellings described these principles for Ada, but we implement similar notions in Slang and Rust. Following these principles, at each activation of a thread, the application code of the thread (it’s Compute entry point) will abstractly compute a function from its input port values and local variables to output port values while possibly updating its local variables.

In the general case, an AADL Thread may explictly call the AADL run-time services (RTS) to receive new inputs at any point in its execution. Yet, this would break the atomicity of a dispatch execution. We explictly forbid this in our formalization as this would introduce unsoundess in many AADL analyses and contract languages such as GUMBO. Furthermore, this capability is barely used in practice.

In AADL terminology, dispatching a thread refers to the thread becoming ready for execution from a OS scheduler perspective. The thread Dispatch_Protocol property selects among several strategies for determining when a thread should be dispatched. In HAMR, we consider only Periodic, which dispatches a thread when a certain time interval is passed, and Sporadic, which dispatches a thread upon arrival of messages to input ports specified as dispatch triggers.

In descriptions of HAMR’s semantics, the state of each port is further decomposed into the Infrastructure Port State (IPS) and the Application Port State (APS). The IPS represents the communication infrastructure’s perspective of the port; this is hidden from the thread application code. The APS represents the thread application code’s perspective of the port.

HAMR follows AADL and supports an input-compute-output model of communication and execution that is based on threads and port communication. To ensure determinism, the inputs received from other components are frozen at a specified point, by default the dispatch of a thread. As a result the computation performed by a thread is not affected by the arrival of new input unless the thread explicitly requests for input. Similarly, the output is made available to other components at a specified point in time.

The distinction between IPS and APS is used to represent AADL’s notions of port freezing and port variable. Typically, when a thread is dispatched, the component infrastructure uses the RTS to move one or more values from the IPS of input ports into the input APS. Then the component application code is called and the APS values then remain ``frozen’’ as the code executes. This provides the application a consistent view of inputs even though input IPS may be concurrently updated by communication infrastructure behind the scenes. The application code writes to the output APS throughout execution. Our intended design for this is that when the application code completes, the component infrastructure will call the Send Output RTS to move output values from the output APS to the IPS, thus releasing the output values all at once to the communication infrastructure for propagation to consumers. This release of output values is the key desired behavior. There are multiple possible implementations that achieve this behavior. At the component’s external interface, this execution pattern follows the (Read Inputs; Compute; Write Outputs) structure championed by various real-time system methods.

For input event data ports, the IPS typically would be a queue into which the middleware would insert arriving values following overflow policies specified for the port. For input data ports, the IPS typically would be a memory block large enough to hold a single value. For output ports, the IPS represents pending value(s) to be propagated by the communication infrastructure to connected consumer ports.
